Concept:
Welcome to my review of the ABOSun Foam Cannons.
If you’ve followed my other foam cannon reviews, you know I usually group these products into three categories:
budget, mid range, and premium. On first look the ABOSun foam cannons stand out because they come in at a budget friendly price point of
around $20 yet carry the design and features you would expect to see on higher end models. They look solid right out of the box and
appear to be ready to use without needing any modifications.
The question is whether these new ABOSun cannons can truly deliver performance that matches their appearance and specifications.
Could they be among the best budget foam cannons available for pressure washers in 2025, and do they have what it takes to hold up against
the more established mid range and premium units? Let’s take a closer look.
Introduction to Foam Cannons:
If you are new to foam cannons or haven’t read my other reviews, here’s a quick overview.
A foam cannon is one of the most useful tools in automotive detailing. It attaches to a pressure washer and produces a thick blanket
of clinging foam that covers the entire vehicle. This snow foam encapsulates dirt, grime, and contaminants so they can be rinsed away with
minimal contact. By reducing the need for scrubbing, foam cannons help prevent swirl marks and marring, while also giving the paint a deeper,
safer clean.
Detailing enthusiasts know the less you touch the paint, the better. Foam cannons make this possible by pre-soaking the surface and
lifting away contaminants before you ever put a wash mitt on the paint. The lubricated foam also acts as a barrier between dirt and clear coat,
further reducing the chance of scratches. Because the foam spreads evenly across body lines, trim, and hard-to-reach crevices,
you get a more consistent and professional looking result.
Foam Cannon Benefits:
Using a foam cannon in automotive detailing offers several key advantages:
1. Effective Cleaning: Thick foam lifts dirt and grime for a more thorough wash.
2. Surface Protection: Lubricated layer minimizes scratches and swirl marks.
3. Time Efficiency: Covers large panels quickly, saving time over bucket washing.
4. Even Coverage: Uniform soap distribution reaches all surfaces.
5. Enhanced Appearance: Delivers a professional, deep, clean shine.
These benefits make foam cannons a valuable tool for achieving a high-quality, efficient, and safe car wash.
Two Foam Cannon Washing Methods:
In automotive detailing, foam cannons are generally used in two ways:
A) Pre Rinsing with Foam:
Purpose: Loosen and lift dirt before the main wash to minimize scratching.
Foam Characteristics: Thick, clinging foam that dwells on the paint to break down contaminants.
Soap Types: Pre-wash or snow foam soaps, either acidic (for minerals, water spots, brake dust) or alkaline (for grease, tar, or road film).
B) Washing with Foam:
Purpose: Provide lubricated cleaning after the pre-rinse has removed the loose debris.
Foam Characteristics: Rich, slick foam that suspends dirt and washes safely.
Soap Types: High-quality pH-neutral car wash soaps safe for waxes, sealants, and coatings.
Both methods work together for the safest and most effective wash. Many detailers, myself included,
prefer to use both a foam pre-rinse and a foam wash for maximum results.
Maximizing Efficiency with Multiple Cannons:
One way to speed up the process is by dedicating different foam cannons to different soaps.
With ABOSun’s budget friendly prices, this is an easy option. You can run one full size 1L cannon with acidic or alkaline pre-rinse soap,
another full size 1L cannon with pH neutral wash soap, and even use the compact Mini cannon as a dedicated under carriage and/or
engine bay cleaning setup. This minimizes cross contamination and streamlines the entire wash routine.
Why Choose the ABOSun Foam Cannons?
ABOSun has carved out a spot in the foam cannon market by offering two strong options for budget minded detailers. The full size
Pro 1L Foam Cannon and the compact Foam Cannon Mini. Both are built to work with most pressure washers and use brass and stainless steel
components that give them an edge over the basic generic models you often find online.
The Pro 1L is geared toward larger jobs where longer run time and capacity matter, making it ideal for trucks, SUVs, and full washes.
The Mini, on the other hand, is designed for quick handling and precision. Its smaller size makes it perfect for tight spaces or for
dedicating to specific tasks like wheels, tires, under carriage and engine bays. Together, they give enthusiasts flexible, affordable
options without sacrificing build quality or needing further upgrades.

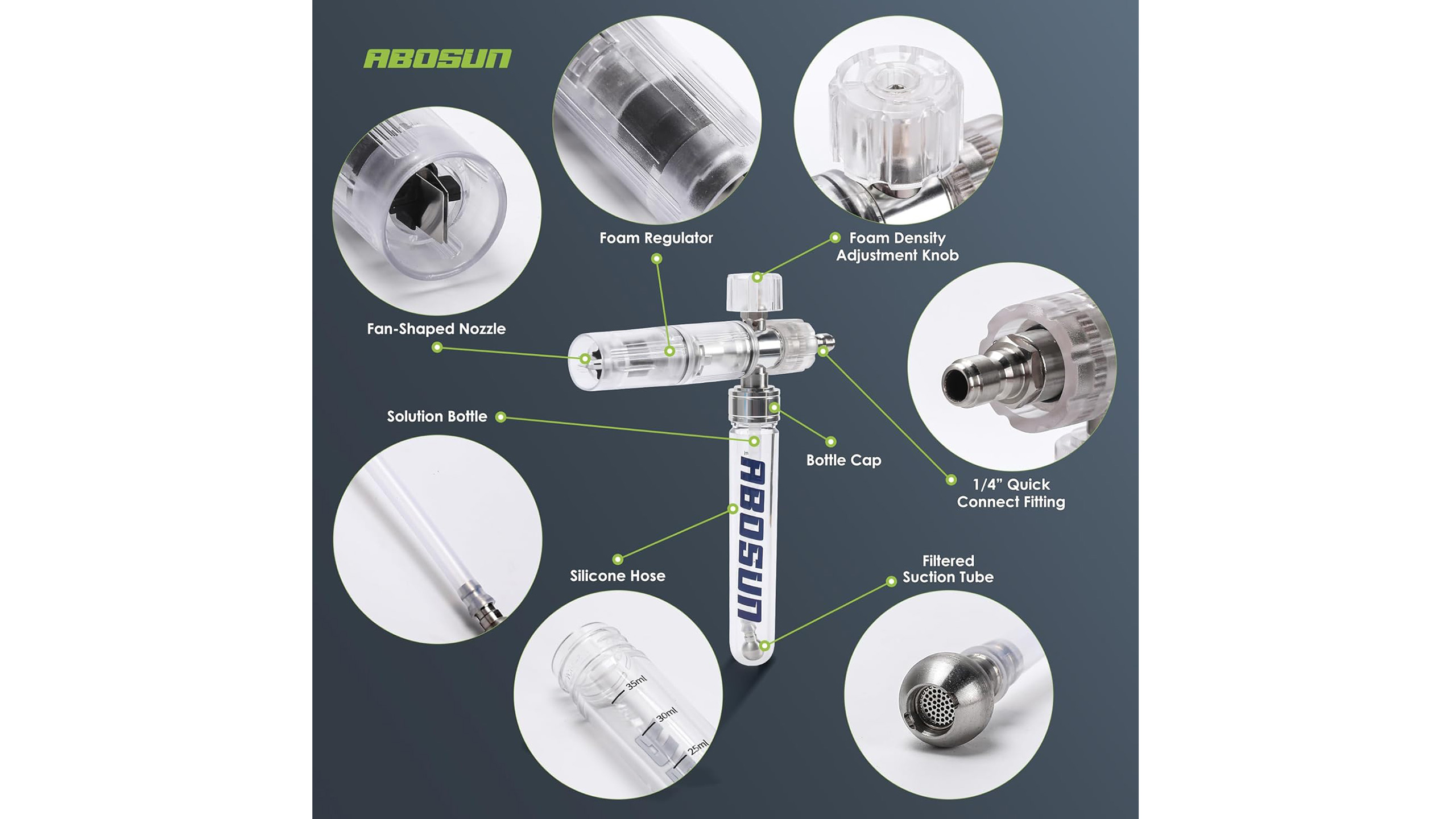

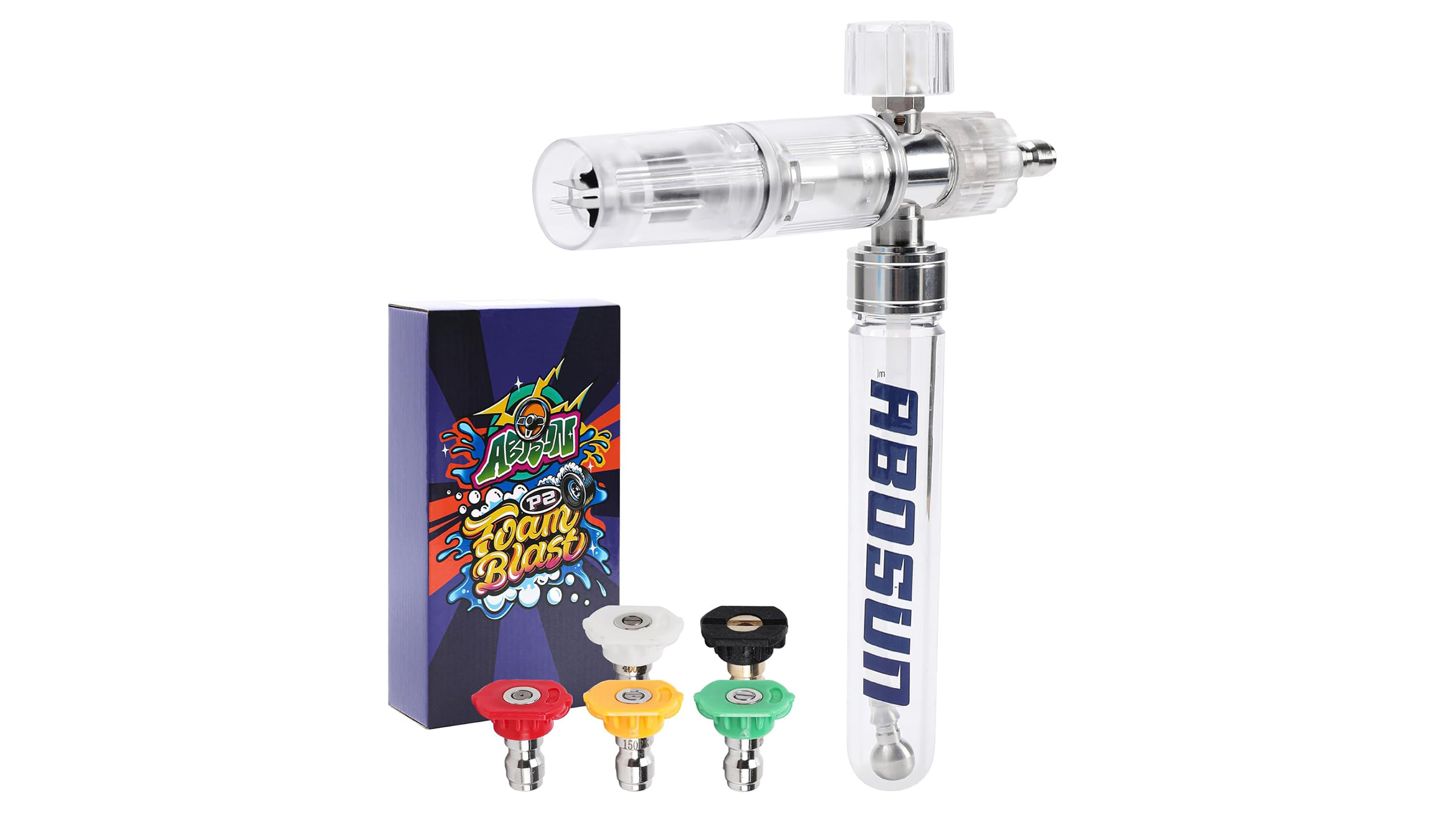

Features
Solid brass core with durable plastic housing
Compact, lightweight design for easy control
Clear 40ml (1.35oz) bottle designed for direct with undiluted soap
Standard 1/4" stainless steel quick connect fitting with hand detachable M22 connection
Adjustable top knob for foam concentration control
Twist nozzle adjusts fan width from 0° to 120°
360° rotatable nozzle for full spray direction control
Silicone tube with metal gravity ball for consistent product draw
Balanced design for one handed operation
Benefits
Generates ultra thick foam directly from concentrated soap, no mixing required
Strong clinging snow foam helps loosen dirt and grime effectively
Lightweight design reduces hand fatigue during extended washes
Compact size makes it easy to maneuver in tight spaces and simple to store
Great option as a dedicated cannon for wheels, tires, or pre-treatment soaps
Quick connect fitting allows fast swapping between guns and lances
Technical Data
Brand: ABOSun
Model: Mini Foam Cannon
Color: Clear/Silver
Bottle Capacity: 40ml (1.35oz)

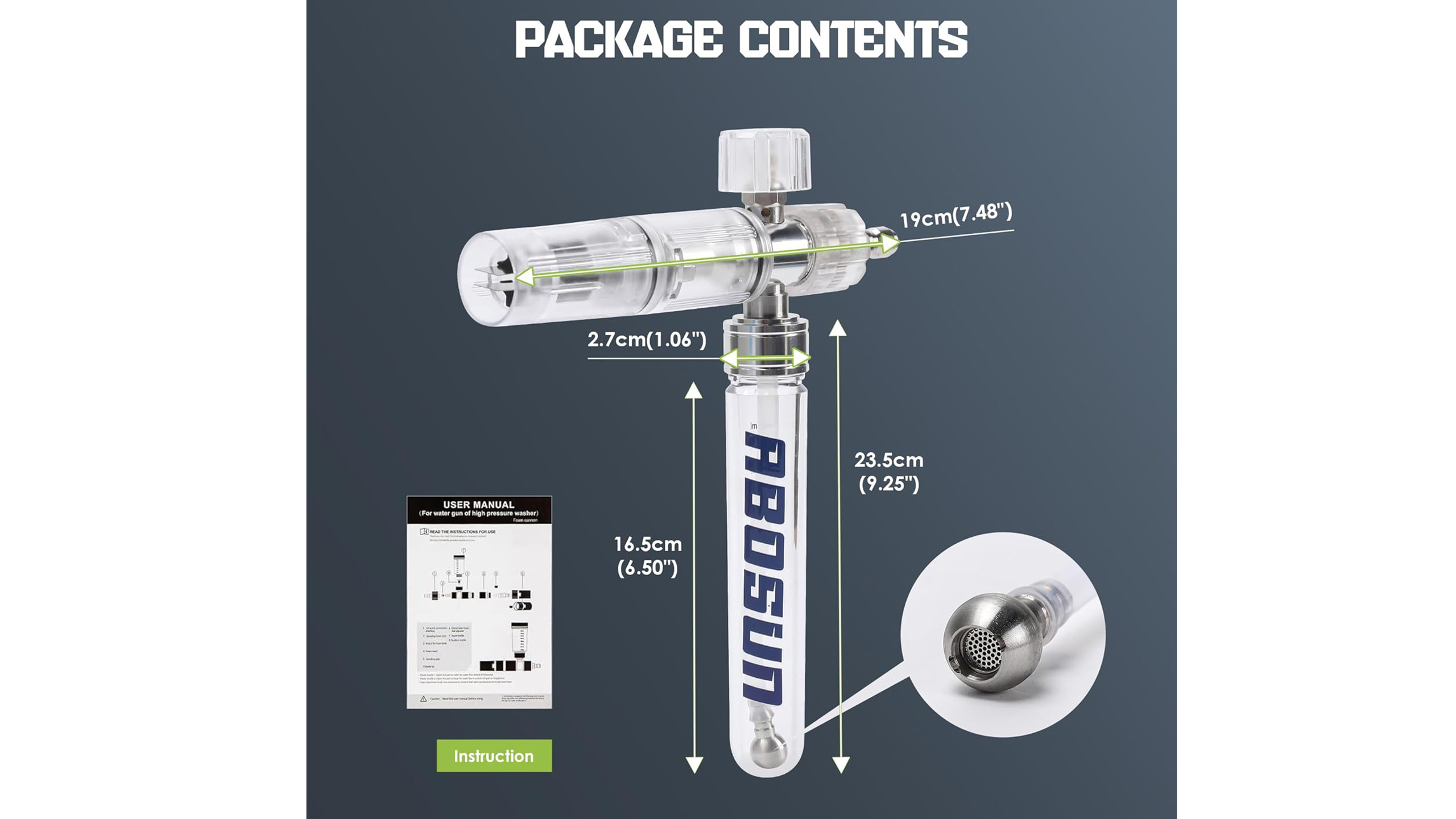

Size: 9.25"h x 1.0"w (bottle) x 7.5"w (manifold)
Maximum Pressure: 4500 PSI
Orifice size: 1.2mm
Item Weight: not specified
ASIN: B0F792BKM3
Included Accessories: Set of five ¼" quick connect nozzles with 2.5mm orifices
Maintenance Tips
Rinse with clean water after every use to avoid soap buildup.
Let air dry with the cap off before reassembling for storage and store in a cool, dry place.
Handle the bottle carefully to avoid cracks.
Review
I tested the ABOSun Mini Foam Cannon and noted it ran at 1150 PSI and recorded a 34-second run time from a full 40ml load
(though the bottle markings only go up to 35ml). That output produced 3500ml total spray volume, resulting in a native dilution ratio of
approximately 86.5:1, or a 1.14% Panel Impact Ratio (PIR), a solid range for general pH-neutral washing.
With thinner soaps such as MJJC Foam Shampoo, the cannon performed smoothly and delivered thick, even foam coverage.
However, thicker formulas like Chemical Guys Mr. Pink caused sputtering, likely due to their higher viscosity exceeding the mini’s flow
tolerance.
With the foam concentration knob at the maximum setting, I saw incredible foam production. The main drawback at this setting is capacity:
even with a full 40ml load, the mini simply doesn’t hold enough product to fully coat a mid-size SUV like my Toyota 4Runner.
I found that it was able to only cover about half the vehicle.
After further testing, I adjusted the foam concentration knob 1–2/6 turns counterclockwise from its maximum foam production setting.
This small tweak transformed the cannon’s efficiency: run time increased to 1 minute and 33 seconds from the same full 40ml load,
with more than adequate foam density and excellent coverage. At this setting, total spray output measured 8,900ml, yielding a
native dilution ratio of 221.5:1, or a 0.45% Panel Impact Ratio (PIR) — nearly identical to my preferred 0.50% PIR target for
general pH-neutral washing. This puts the Mini’s performance squarely in line with full-size foam cannons in both runtime and coverage,
allowing me to fully coat my Toyota 4Runner and even applying multiple foam passes for thorough coverage before the contact wash.
Build quality is impressive for a compact unit, featuring heavy duty clear plastic construction, stainless steel hardware, and tight,
leak free connections. It looks premium and feels sturdy in hand.
Despite its limited capacity, the ABOSun Mini shines in targeted applications where precision and efficiency matter more than volume.
It’s ideal as a dedicated foam cannon for wheel wells, engine bays, undercarriage and perhaps even for spot applying pre-treatment
chemicals such as iron removers, bug/tar removers, or alkaline pre-soaks. It can also serve well in quick maintenance washes,
bicycle or motorcycle detailing, or tight storage setups where space and weight savings are important.
For those purposes, it’s a well built, visually appealing, and affordable specialty tool that complements, rather than replaces,
a full-size 1L cannon.
One feature to note that I really appreciate is that the foam cannon bottle comes without a pre-applied label.
This gives you the choice: leave it clean and de-badged for a minimalist look, or apply the ABOSun label exactly where you want it.
With many budget foam cannons, labels are often off-center or crooked, so this self installed approach is a small but thoughtful detail.
Lastly, the included set of five 1/4" quick connect stainless steel nozzles is another huge plus, easily a $20+ value on its own.
The 2.5mm orifice size is perfect for lower GPM pressure washers, like the Karcher 2100 I used previously.
I even spent $22 myself on a 4-piece set of nozzles of this size for that washer, so including them here is a big plus.
That said, my current Active 2.0 Pressure Washer requires a 3.5–4.5mm orifice to run optimally, so these nozzles won’t fully match every setup,
something to keep in mind depending on your pressure washer.

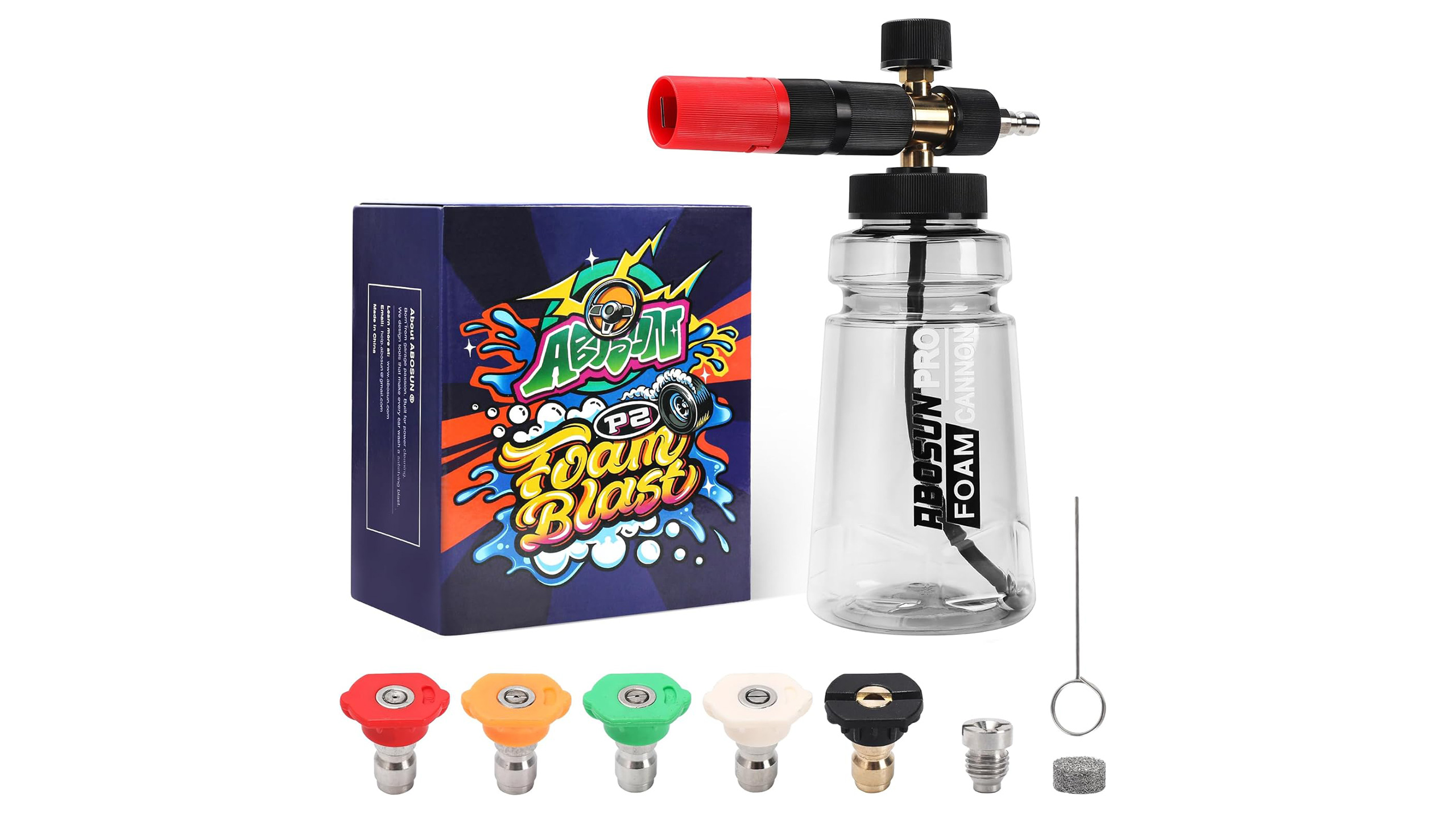

Features
Premium brass and stainless steel construction for durability
Large 1000ml (33.8 oz) transparent bottle for easy monitoring of soap levels
Extra 28mm thread inside head to allow for user supplied bottle.
Wide mouth bottle simplifies filling and cleaning
Wide base for stability during use
Standard ¼" stainless steel quick connect fitting with hand detachable M22 connection
Threaded detachable nozzle to replace the foam maker, as opposed to fixed-pin designs
Adjustable top knob to control foam concentration

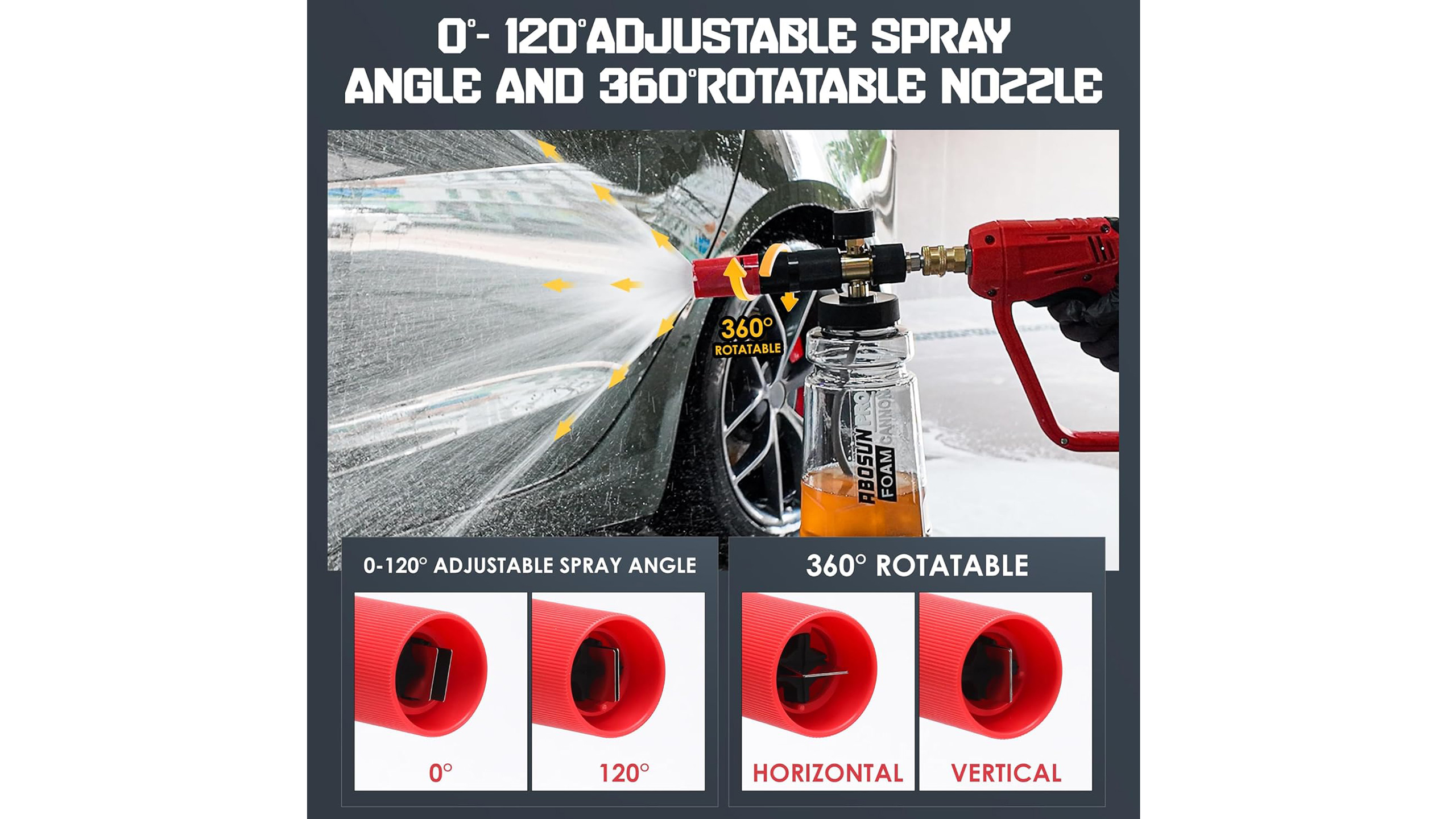

Twist nozzle adjusts fan width from 0° to 120°
360° rotatable nozzle for full spray direction control
Silicone tube with metal gravity ball ensures consistent product draw
1.2mm orifice pre-installed, plus extra 1.1mm orifice for thicker foam at lower GPM pressure washers
Benefits
Produces dense, creamy foam that clings to surfaces for longer dwell time
Quick connect fitting allows fast, secure setup every time
Dual interchangeable orifices optimize foam output for different pressure washer setups
Adjustable foam concentration and spray pattern give precise control over coverage
Stainless steel weighted filter on the suction hose ensures you use every last drop of solution
Large 1L bottle reduces the need for frequent refills during full vehicle washes
Delivers dense, creamy foam that adheres to your car’s surface for longer dwell time
Technical Data
Brand: ABOSun
Model: ABO-FC03
Color: Black/Red
Bottle Capacity: 1000ml (33.8 oz)
Size: 10.75"h x 4.0"w (bottle) x 10.6"w (manifold)
Minimum Pressure: 1000 PSI
Maximum Pressure: 4500 PSI
Maximum Temperature: 140°F / 60°C
Orifice Size: 1.2mm installed and extra 1.1mm included
Item Weight: not specified
ASIN: B0F87WFWCY
Included Accessories: Set of five ¼" quick connect nozzles with 2.5mm orifices
Maintenance Tips
Rinse with clean water after every use to avoid soap buildup.
Let air dry with the cap off before reassembling for storage and store in a cool, dry place.
Handle the plastic bottle carefully to prevent breakage, as clear bottles are known to be more brittle than opaque HDPE types.
Note on Dilution Ratios
I always test my foam cannons' output to dial in the perfect soap to water mix for my vehicles wash routine.
I aim for a 2.0% panel impact ratio (PIR) on touchless washes and drop it to 0.5% for standard pH-neutral ones.
PIR represents the actual soap concentration hitting the vehicle surface after the cannon dilutes it.
To determine a cannon’s native dilution rate, I fill it with 1,000ml of water, spray into a bucket, and measure the total output.
This gives a baseline for how much soap you need for your desired PIR.
For precise calculations, use my
Foam Cannon Spreadsheet!
This lets you input your intended cannon load volume and desired PIR and automatically calculates the proper soap and water amounts.
Keep in mind that a cannon’s native dilution can vary depending on incoming water pressure, electrical amperage, and your
own pressure washer’s specifications, so testing them yourself is key to achieving consistent results.
Review
The ABOSun Pro 1L Foam Cannon immediately impressed me both on paper and in use. It appears identical to the well renowned Raincovo
foam cannon, having the same design and performance at roughly two-thirds the cost, coming in at around $22 compared to $33 for the Raincovo,
and a fraction of the price of premium options like MJJC at around $100. That makes this cannon one of the best values available today.
In testing, the Pro 1L performed flawlessly. Using Chemical Guys Mr. Pink, the cannon produced rich, uniform foam with excellent cling.
During my standard 1000ml discharge test it ran at 1150 PSI, for 2 minutes and 5 seconds, yielding 12,300ml of total output.
This calculates to a native dilution ratio of 11.3:1 and a native Panel Impact Ratio (PIR) of 8.13%, which is consistent with similar
cannons I have previously reviewed. For a standard pH-neutral wash, a load of 62ml soap and 939ml water in the bottle produces a 0.5% PIR,
ideal for balanced foam density and product economy.
Build quality appears to be great. The manifold features internal stainless steel components with brass exterior fittings that feel solid,
though I would have preferred stainless steel throughout. The clear smoke tinted 1L bottle looks great and allows easy visibility of
solution levels. A particularly thoughtful detail is the extra 28mm internal thread inside the head, which lets users attach
alternate bottles, something which ABOSun doesn’t even advertise. Equally impressive is the threaded detachable nozzle,
a feature I have never seen before, allowing for quick removal and replacement of the foam maker insert without tools, far more convenient
than the typical fixed-pin designs found on typical foam cannons.
The silicone suction tube is very flexible, and the stainless steel weighted and filtered ball ensures smooth, uninterrupted flow and
full use of the solution while holding the cannon at any angle. I also appreciate the inclusion of an extra foam generator core
and a 1.1mm orifice for users running lower GPM pressure washers, demonstrating thoughtful engineering at this price point.
Again, this foam cannon came with two unadvertised features, which really should be highlighted.
1) Extra 28mm thread inside head to allow for user supplied bottle.
2) Threaded detachable nozzle to replace the foam maker, as opposed to fixed-pin designs.
One feature I really appreciate is that the foam cannon bottle comes without a pre-applied label.
This gives you the choice: leave it clean and de-badged for a minimalist look, or apply the ABOSun label exactly where you want it.
With many budget foam cannons, labels are often off-center or crooked, so this self installed approach is a small but thoughtful detail.
Another standout is the dual nozzle adjustments. Both the fan width and spray direction knobs are stiff enough to stay in place independently,
a feature not often found even on higher end models. This makes it essentially “set it and forget it,” eliminating unwanted changes during
use or storage.
The included set of five 1/4" quick connect stainless steel nozzles is another huge plus, easily a $20+ value on its own.
The 2.5mm orifice size is perfect for lower GPM pressure washers, like the Karcher 2100 I used previously.
I even spent $22 myself on a 4-piece set of nozzles of this size for that washer, so including them here is a big plus.
That said, my current Active 2.0 Pressure Washer requires a 3.5–4.5mm orifice to run optimally, so these nozzles won’t fully match every setup,
something to keep in mind depending on your pressure washer.
Though the cannon produced thick foam straight out of the box, it was of the wetter style, great for pre-wash and touchless applications,
but I prefer slightly dryer foam for pH-neutral contact washes. By swapping to a three-piece foam generator
(two stainless steel discs with a felt filter sandwiched in between) and changing the orifice from 1.20mm to 1.25mm (as recommended by my
pressure washer manufacturer Active Products), I achieved a denser, stickier foam ideal for my preferences.
This modification was quick and simple thanks to the threaded detachable nozzle and hand-detachable M22 connection,
demonstrating thoughtful, user friendly design.
Overall, the ABOSun Pro 1L Foam Cannon delivers premium level features and performance at an entry level cost.
With its consistent output, clever design touches, and quality construction, it’s easily one of the strongest contenders in the
budget as well as mid-range categories, keeping up with all the features and performance of premium level cannons.
Watch my YouTube review for a demo of the ABOSun Foam Cannons in use on my Toyota 4Runner!
|
|
